DX-R8T/E
150KHz~35(30)MHz SSB/CW/AM/FM/IQ
All-mode Desktop Receiver

Photo shown with optional accessories
Features of DX-R8T/E
- I/Q signal output allows use of third-party SDR software
- 150 kHz?`35MHz (T-model up to 30MHz) in AM/USB/LSB/CW/FM and IQ modes

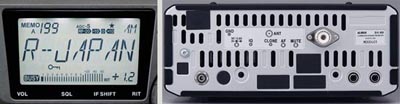

- Front and rear jacks make connecting accessories easy
- Direct frequency input to the dual VFO system
- Detachable front-control panel offers more mounting options
- Large LCD display makes operation simple
- Front-speaker and powerful 2W audio output makes it easy to hear signals
- Rugged, die-cast chassis
- Narrow ceramic filters (AM 2.4kHz/SSB 1kHz) and 0.5kHz audio-filtering for CW
- 4-level RF preamp/attenuator
- IF shift and RIT reduces interference
- Noise blanker enables clearer reception
- 3 banks/600 memory channels make it easy to save banks of favorite frequencies
- Two sets of programmed search pairs and varieties of scanning modes
- Auto-power-off, Sleep-timer, Dial and Key locks, RX indicator illumination and more!
- Computer utility software makes it easy to manage settings and edit memories
- Monitor shortwave signals from aviation, navigation and data sources
Free utility Software Download
Please click here for details
Specifications
Genaral DX-R8 All Models
|
Operating mode: |
USB, LSB, AM, CW, FM and I/Q output for SDR software |
Antenna impedance: |
50ohm unbalanced |
Frequency stability: |
+/-1ppm |
Power requirement: |
13.8V DC +/-15% (11.7 to 15.8V DC) |
Ground method: |
Negative ground |
Current drain: |
Receiver: 1.0A(max.) |
Operating temperature: |
-10digC to 60digC (+14digF to +140digF) |
Dimensions: |
240(w) x 94(h) x 255(d)mm (Projections not included)
(9.45"(w) x 3.7"(h) x 10"(d)
240(w) x 100(h) x 293(d)mm (with projection)
(9.45"(w) x 3.94"(h) x 11.54"(d) |
Weight: |
Approx. 4.1kg (144.6oz) |
Receiver
|
Receive circuitry: |
Double conversion superheterodyne |
Sensitivity: |
SSB: (0.15 to 1.8MHz) 0dBu(1uV)
CW: (1.8 to 30MHz) -12dBu(0.25uV)
AM: (0.15 to 1.8MHz) +20dBu(10uV)
AM: (1.8 to 30MHz) +6dBu(2uV)
FM: (28 to 30MHz) -6dBu(0.5uV) |
Intermediate frequency: |
1st 71.75MHz, 2nd 455KHz |
Selectivity: |
SSB, CW, AM(narrow): 2.4KHz/-6dB 4.5KHz/-60dB
AM, FM: 6KHz/-6dB 18KHz/-60dB
-6dB: 6KHz or more
-60dB: 16KHz or less (NFM) |
Spurious and image rejection ratio: |
More than 70dB |
Audio output power: |
More than 2.0W(8ohm 10%THD) |
RIT variable range: |
+/-1.2KHz |
DX-R8 Coverage
* 40KHz~150KHz appears on the screen but Below 150KHz is out-of-warranty and not intended for practical use.
|
Receiver Frequency coverage: |
DX-R8T (USA/Canadian): 150KHz - 29.99999MHz
DX-R8E (Worldwide): 150KHz - 34.99999MHz |
Note: Specifications are subject to change without notice or obligation. |
Standerd Accessories
Optional Accessories
- EDS-17 Front control remote kit (5m cable, front panel bracket, unit cover and hardware)
