New Products

DJ-X100T/E Multi-Mode Communications Receiver
Full-Scale Digital Reception Functions are condensed into this size.

DJ-X100TE

In addition to analog communication modes that are still widely used, DJ-X100 supports the typical digital communication formats such as DMR, NXDN and dPMR. The frequency range is 30MHz to 470MHz, boldly cutting off the bands no longer used for radio communications, and instead the low VHF to UHF communication bands are flat with little sensitivity difference to the edges. The design achieves IP67 dust and immersion resistance in a tight form reminiscent of RF measurement tools. Based on Alinco's receiver design know-how cultivated over many years,The DJ-X100 is a receiver with clear audio by DSP, a variety of reception modes by SDR configuration, and selective scanning of only nearby stations by GPS. The DJ-X100 is more than a receiver, it is a "multi-mode receiver".



DR-MD520 DMR TIER1/2 Amateur Radio Mobile Transceiver
T: 145/222/440 MHz
E: 144/430 MHz
GPS-receive built-in, supports automatic repeater roaming!

DR-MD520

The Alinco DR-MD520 Tier 1/2 DMR transceiver features Built-in GPS receivers with APRS support, automatic repeater roaming. The T version covers 145/222/440MHz while E version covers 144/430MHz bands. It is also capable of monitoring civil aviation, FM radio and VHF/UHF utility bands. DR-MD520 offers land-mobile grade operations including:

Common features

  • 2m 55W/ 1.25m 5W (T version only) / 70cm 40W max output
  • 4000 channels, 250 zones, 250 scan lists
  • Displays DMR ID, Call sign, Name and Geographical info
  • Allows CSV export/import of setting parameters
  • Easy import of DMR contact database (entire world wide)
  • Single or dual channel selectable
  • FM Broadcasting receiver with 100 memory channels and VFO
  • Manually programmable Side and Hot keys.
  • Automatic date and time calibration by GPS
  • X-band repeat, Analog uplink/Digital downlink or vice versa (T-version only)
  • Emergency alarm
  • Mixed Mode Operation: Automatically detects and switches between analog and digital modes depending on the signal received
  • Recording time 4 Hours

* Digital mode

  • 10,000 Talk Groups, 250 Radio ID, 500,000 contact lists
  • Displays the Caller ID and name
  • Selective calls including Individual, Group or All
  • Digital Monitor function to receive signals without matching ID or color codes.
  • Plenty of Text Messages 100 pre-programmable short messages of up to 200 characters each, capable of editing through the keys without using a PC

* Analog mode

  • Variety of signaling; CTCSS/DCS/DTMF/2-TONE/5-TONE encode and decode
  • Four different Tone-burst tones
  • Programmable Auto Repeater Shift in VFO mode
  • Kill & Stun functions



DJ-VX50HT/HE Dual Band Handheld Transceiver
Power, Features and fun!

DJ-VX50

Full of advanced features, the DJ-VX50H offers land mobile-grade operation and powerful 5W/(UHF 4W)output in a compact rugged IP67 body. CTCSS, DTMF, and DCS are standard, along with a variety of tone bursts for repeater access. Convenience features include direct frequency input, alphanumeric channel labels and 200 memory channels that can each store operating parameters. In addition, DJ-VX50H sports VHF AM aircraft, FM broadcast and NOAA weather channel receiver for an extra listening pleasure!



DJ-MD5T/TGP, E/EGP
An Exciting Compact, 2-Slot Dual-band DMR Transceiver!

DJ-MD5

Built-in GPS Receiver
Transmits and receives GPS coordinates automatically, and displays the distances between you and other users. (TGP,EGP models)

Clear Voice and Powerful Audio
Utilizes DVSI's AMBE+2R vocoder for Crystal clear DMR digital audio for use in noisy environments like construction sites and malls. Powerful 1W audio output to insure loud crisp sounds.

Large, Full-color Display
Features 1.77 inch display with a menu-driven interface, icons and large, easy-to-use keys for comfortable operations and message reading.

Real Two-slot DMR
The DMR Tier 2 two-slot TDMA technology doubles your communica- tions capacity!

Mixed Mode Operation
The DMR Tier 2 two-slot TDMA technology doubles your communica- tions capacity!

Digital Voice Recorder
Up to 14 hours of recording communications and sounds/voice using an internal or optional microphone.




Other Versatile features
* Common to Digital and Analog modes

  • Selectable output power 5W/2.5W/1W/0.2W
  • 4000 channels, 250 zones, 250 scan lists
  • Displays DMR ID, Call sign, Name and Geographical info.
  • VOX built-in
  • Allows CSV export/import of setting parameters
  • Easy import of DMR contact database (entire world wide)
  • Single or dual channel selectable
  • FM Broadcasting receiver with 100 memory channels and VFO
  • Manually programmable Side and Hot keys.
  • Automatic date and time calibration by GPS (TGP,EGP models)

* Digital mode

  • 10,000 Talk Groups, 250 Radio ID, 160,000 contact lists
  • Displays the Caller ID and name
  • 32 preset encryption codes
  • Selective calls including Individual, Group or All
  • Digital Monitor function to receive signals without matching ID or color codes.

* Analog mode

  • Variety of signaling; CTCSS/DCS/DTMF/2-TONE/5-TONE encode and decode
  • Four diff??erent Tone-burst tones
  • Programmable Auto Repeater Shift (VFO)

This is not an amateur radio equipment.
Please inquire to your dealer for details of this product.

  WARNING
ATTEMPTED USE WITH 3RD PARTY MICROPHONE VOIDS WARRANTY AND MAY RESULT IN PERMANENT DAMAGE TO THE RADIO



DJ-MD40
An Exciting New DMR Radio that's available to all!

DJ-MD40

This Alinco's DMR transceiver packs a lot of performance into a compact and rugged polycarbonate body. Designed to resist dust and splash, the DJ-MD40 features specs such as 1W audio output with a large speaker and 2.5ppm frequency stability.
Capable of operating 5W output in analog and digital with mixed mode,1000 channels programmable in 64ch per zone in a hotel, shopping mall, theme-park, exhibition hall for business, construction, factory, warehouse, stadium where communication comes first, the DJ-MD40 is a brilliant choice for everyone!

This is not an amateur radio equipment.
Please inquire to your dealer for details of this product.



DR-735T/E
Simply Beautiful and Beautifully Simple.

DR-735

This "beautifully simple" radio has fully independent keys and dials to deliver true dual-band operation. The removable front panel can be remotely mounted or inverted for optimal speaker placement. Building on Alinco's reputation for simple operating commands and straight-forward key design, the DR-735 is a radio you can start enjoying from the moment you power up!



DR-638HE
Dual-Band Mobile Transceiver with Full Duplex Capability

DR-638HE

The DR-638 dual-band transceiver from Alinco makes a sharp attractive addition to any operating environment. Starting with full duplex capability and a remotely mountable control head, the DR-638 is a solid performer for base or mobile operation.

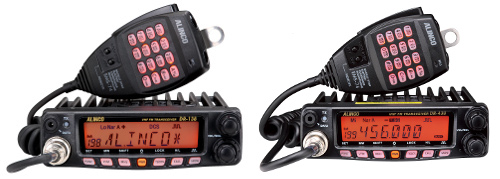

DR-138/438
Best Value, Proven Reliability and Feature packed!

DR-138/438

The DR-138/438 is a high technology radio that delivers power and performance in a small package. User-friendly configuration and programmable features make the DR-138/438 the radio of choice for both demanding and beginner operators.



DJ-500T/E Dual Band Handheld Transceiver
Amazing high performance,
compact size, and full featured!

DJ-500

Full of advanced features, the DJ-500 offers landmobile-grade operation and powerful 5W output. CTCSS, DTMF, DCS and 5-tones are standard, along with a variety of tone bursts for repeater access or selective calling.
Convenience features include direct frequency input, alphanumeric channel labels and 200 memory channels that can each store operating parameters.
A Li-Ion battery pack and a stand charger are standard, adding power and convenience. The DJ-500 looks simple, but remember, looks can be deceiving! The DJ-500 places one of the world's most advanced transceivers at your command, at ALINCO's affordable price!
